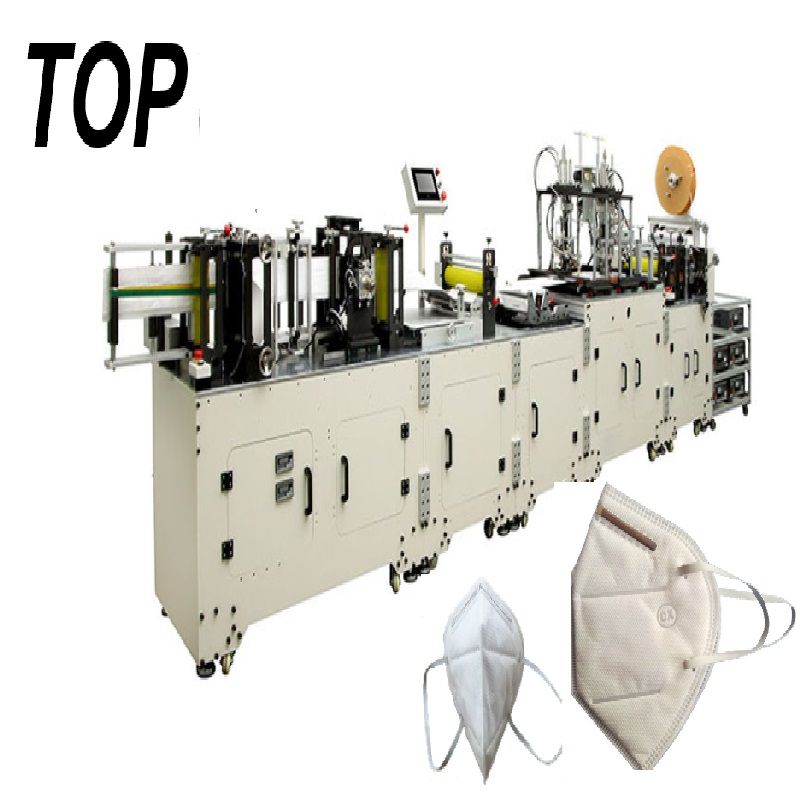

N95 and 3 Ply Disposable Mask Making Machine

Machine profile

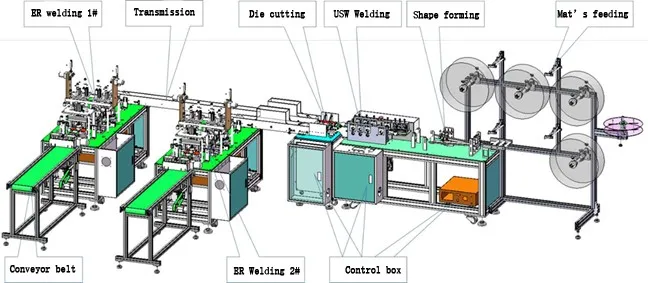

This machine is universal design for the production of non-woven Multi-layer face mask, it is mainly constructed by material feeding, shaping and welding, die cutting, transmission, ear string welding(ESW) and stacking mechanism. Except materials loading to be done by manual, other functions are fully automatically run. It is also could be combined with one, or two ESW stations to setup a line which depends on line speed requirement.

1

 2

 45

No

Item

Machine with 1 ESW station

Machine with 2 ESW stations

Remark

1

Model no

TWSL-KQZ01

TWSL-KQZ02

ESW: Ear stringwelding

2

Output

3000 uph

4800 uph

pcs per hour

3

Machine size

L 5100 X  W 3800 X H 2000 mm

L 6800 X  W 3800 X H 2000 mm

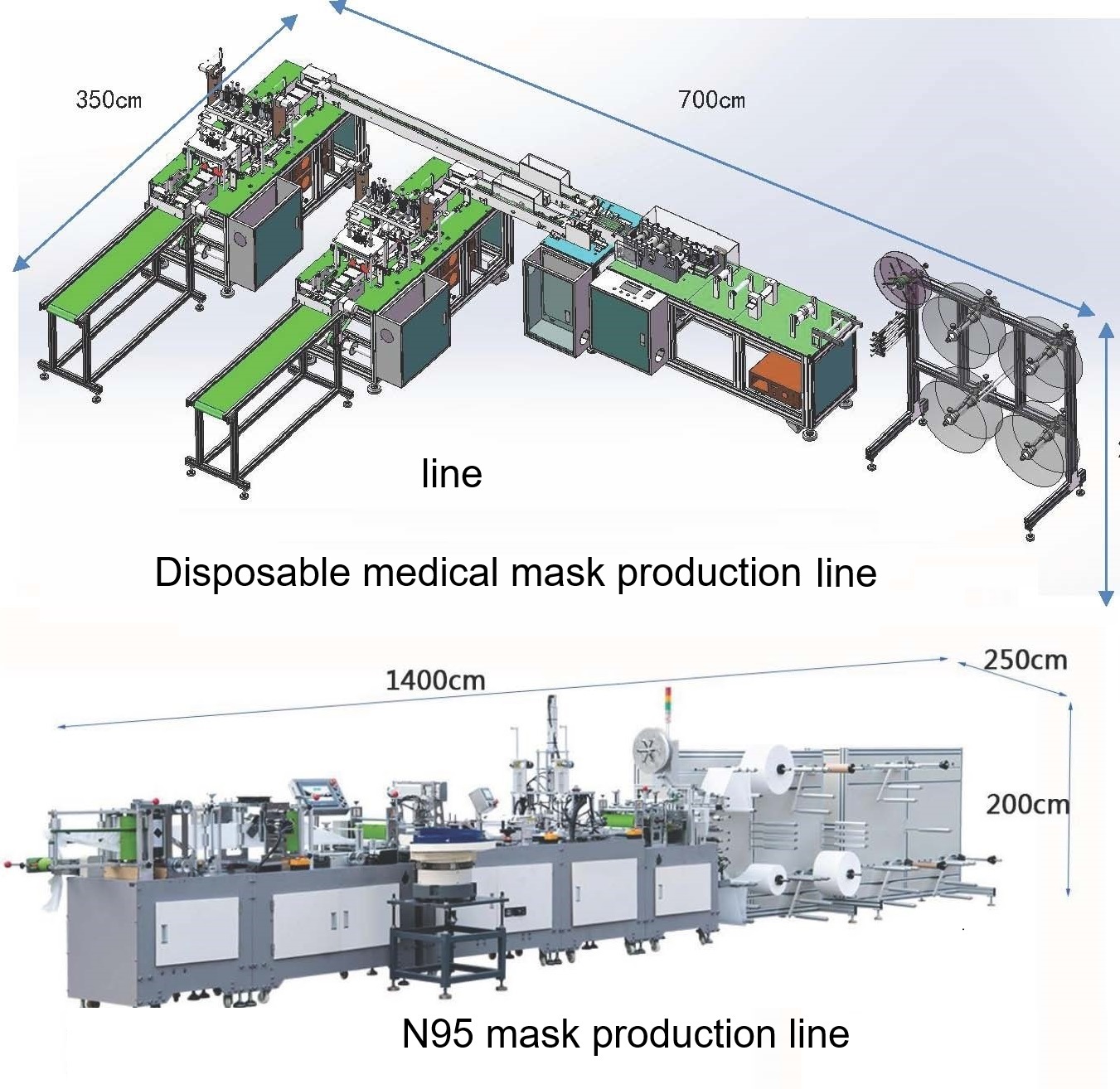

Fig: 2-1& 2-2

4

Installation space requirement

8.0m x 5.0 m

9.0m x 4.5m

To be keep at least

0.9 meter clear space around the machine

5

Connection

Power supply

3 Phase 5 lines 380V 60A

3 Phase 5 lines 380V 80A

The power supply needs a separate switch configured according specific power

Air supplier

Φ6  air pipe inlet

Φ6 air pipe inlet

6

Power consumption

Power

20KW

29KW

Compress air

0.5~0.6MPa,

0.5~0.6MPa,

Customer provide

7

Operation condition

Temperature: 25℃±5℃

Humidity:≤40%



8

Ground/floor loading

≥750Kg/m²
