China pod capsule coffee production Pod coffee filling and sealing machine factory HSP-Serial
Pod coffee filling sealing machine
Brief Instruction:
HSP-S Pod coffee filling machine can pack Pod coffee with a deep drawn pleated paper filter from roll-stock.
Main Working Process for pod configuration:
- Auto Feed the roll fitler paper onto the machine
- Auto top cutting and forming unit
- Servo motor to fill coffee while vibrating, weight around 5-20g ( can be adjust), while filling and Nitrogen flush.
- Automatic Nitrogen flush
- Auto Feed the down part roll fitler paper onto the machine
- Auto top cutting / forming and sealing unit
- Automatic mechanical grasp the finished product to conveyor ( connect to the conveyor)
Technical Parameter:
| NO. | Model | HSP-2 | HSP-4 | HSP-6 |
| 1 | Capacity | 3500-4000 Cups/hour | 8000-9000 Cups/hour | 10800-11000 Cups/hour |
| 2 | Working station | 2lanes | 4lanes | 6lanes |
| 3 | Filling range | 0-20grams | 0-20grams | 0-20grams |
| 4 | Filling accuracy | ±1.5% | ±1.5% | ±1.5% |
| 5 | Air pressure / gas consumption | ≥0.8Mpa／0.1m² | ≥0.8Mpa／0.1m² | ≥0.8Mpa／0.1m² |
| 6 | Machine size | L 4800mm* W2000mm* H2550mm | L 4800mm* W2700mm* H2550mm | L 5000mm* W2900mm* H2550mm |

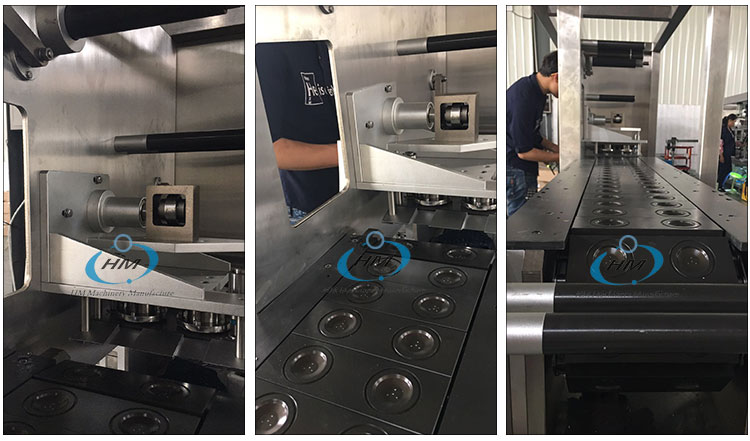

Picture details：
