k cup with Filter thermo-sealing and Ultrasonic sealing machine / welded machine

China Best quality k cup with  Filter thermo-sealing and Ultrasonic sealing machine / welded machine





Brief Instruction:

HSPT model k cup machine can pack drip coffee capsules placing into the capsules plastic inserts as well as a deep drawn pleated paper filter from roll-stock.

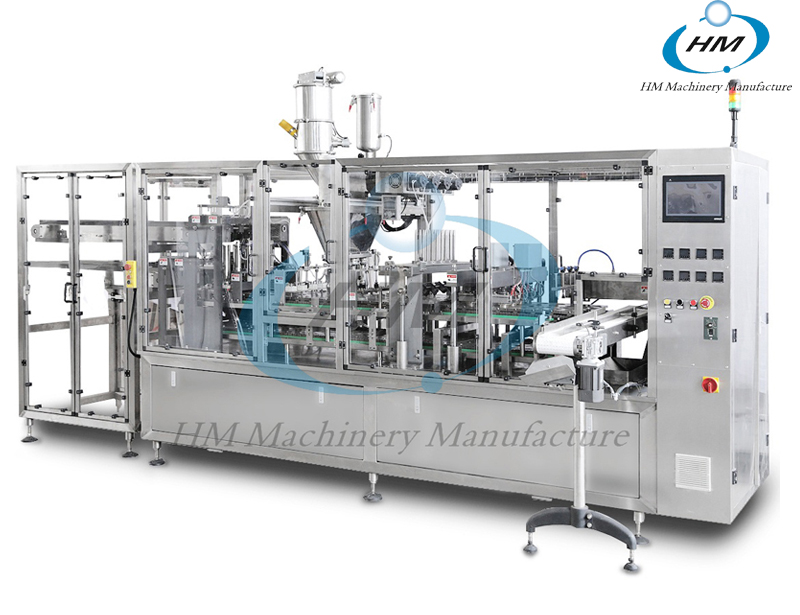

The HM machinery HSPT k cup with filter welding coffee machine is reliable and cost effective option, designed for low/ medium production volumes,  The drip coffee capsule filling and sealing machine can also provide automatic Deep drawing pleated filter and Kcup Filter thermo-sealing unit and Ultrasoni sealing machine.



Technical Parameter:

NO. Model HSP-2 HSP-4 HSP-6
1 Speed 3500 Cups/hour 7000 Cups/hour 10800Cups/hour
2 Working station 2lanes 4lanes 6lanes
3 Filling range 0-20grams 0-20grams 0-20grams
4 Filling accuracy ±1.5% ±1.5% ±1.5%
5 Voltage Three Phase  240V 60HZ/7KW, can be custom-made according to customer requirement. Three Phase  240V 60HZ/7KW, can be custom-made according to customer requirement. Three Phase  240V 60HZ/7KW, can be custom-made according to customer requirement.
6 Air  pressure / gas consumption ≥0.8Mpa/0.1m² ≥0.8Mpa/0.1m² ≥0.8Mpa/0.1m²
7 Working Temperature 5-35°C 5-35°C 5-35°C
8 Relative humidity ≤85% ≤85% ≤85%
9 Machine size L 4800mm* W2000mm* H2550mm L 4800mm* W2700mm* H2550mm L 5000mm* W2900mm* H2550mm


Working process:

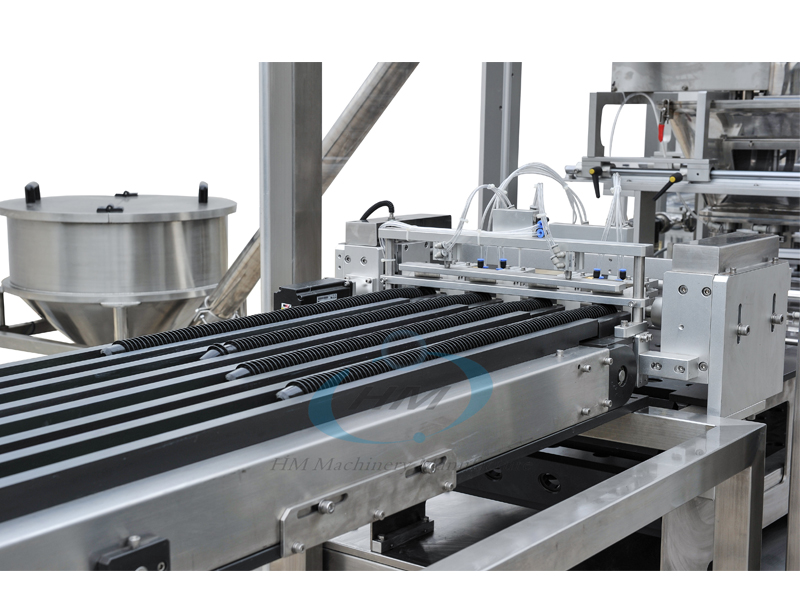

1. Conveyor of empty Kcup

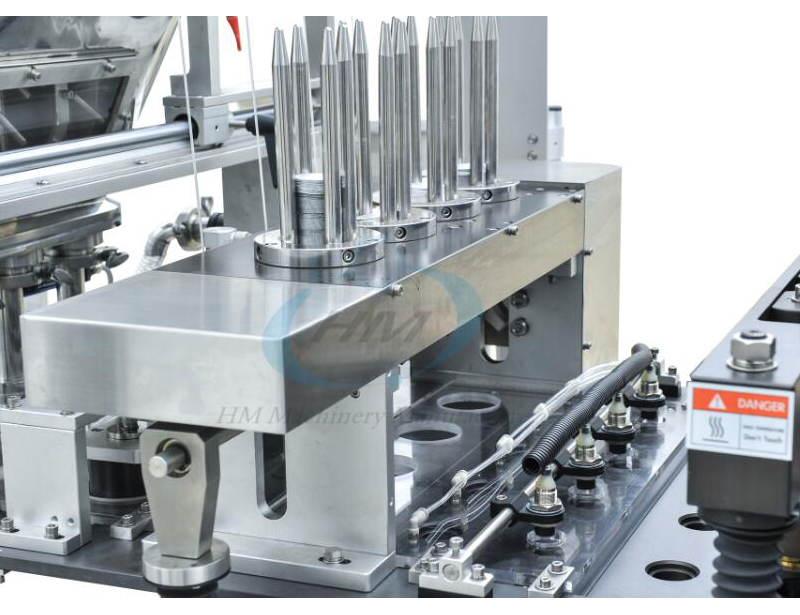

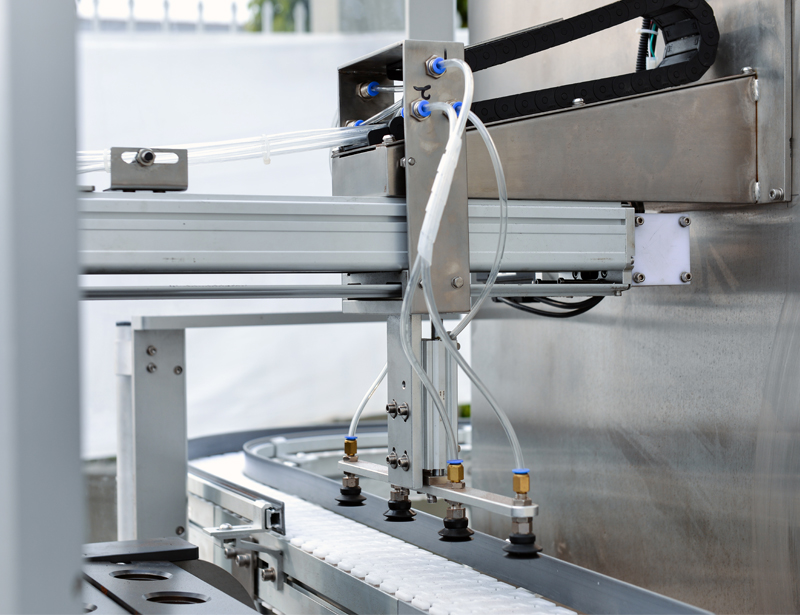

2. Feed Kcup onto machine:

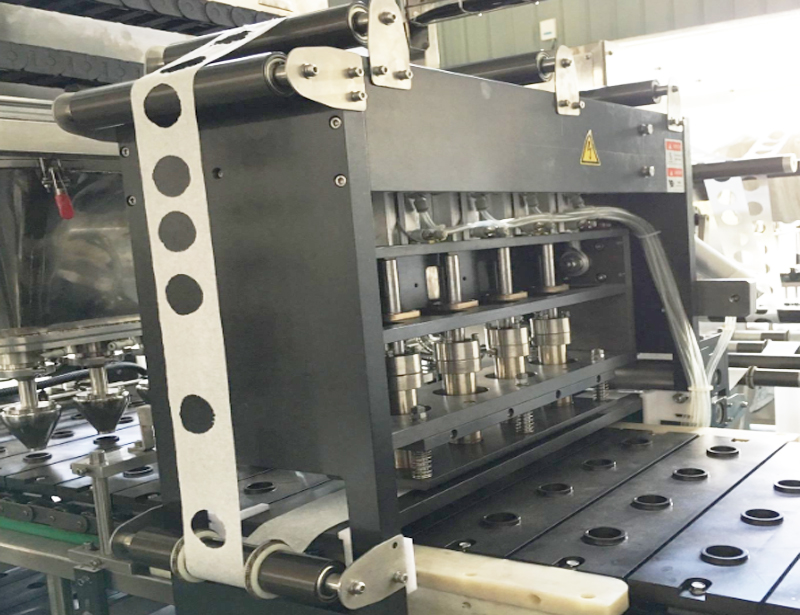

3. Filter Paper in the Roll:

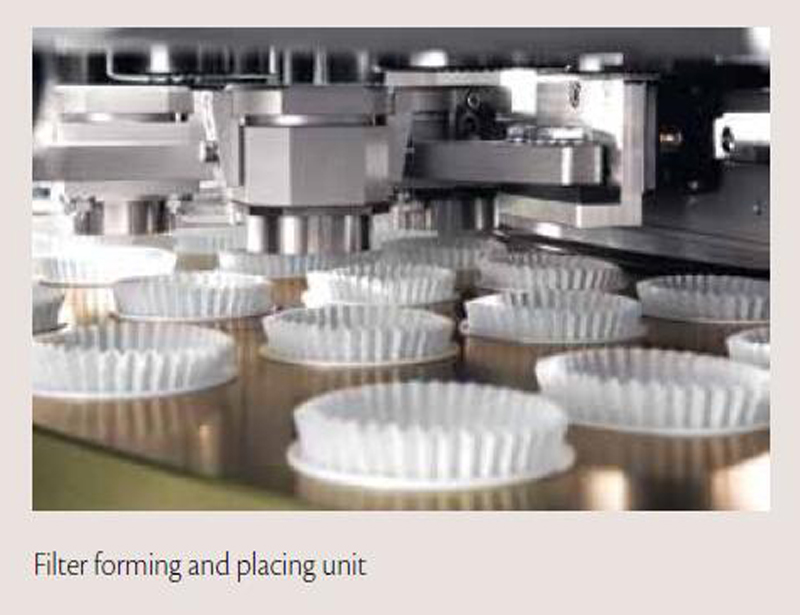

4 .Filter forming and placing unit

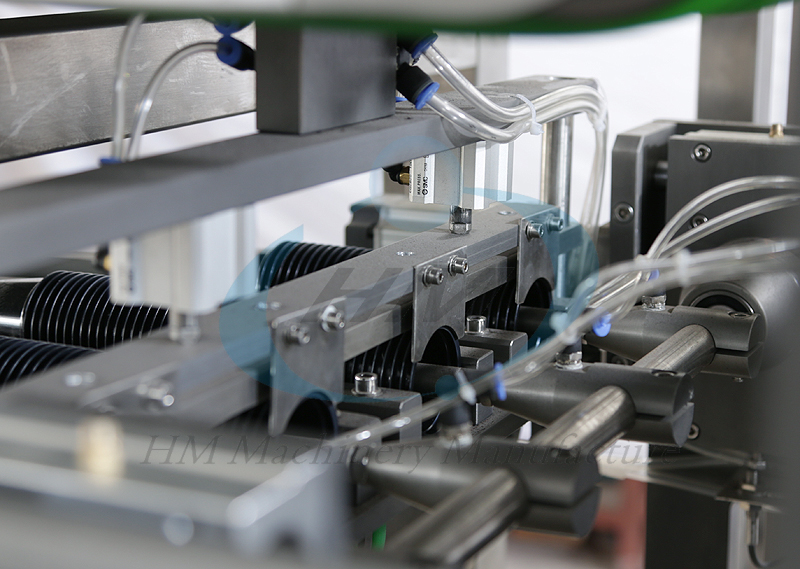

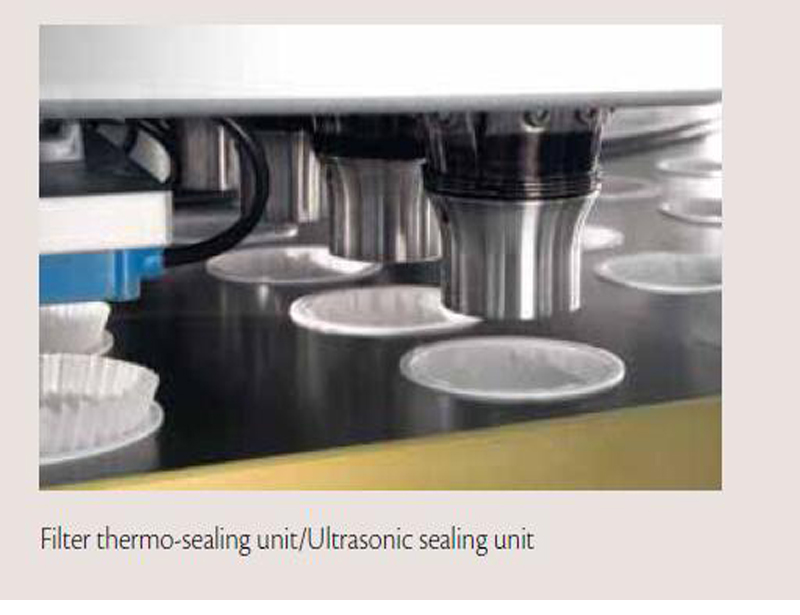

5. Filter thermo-sealing unit and Ultrasoni sealing unit

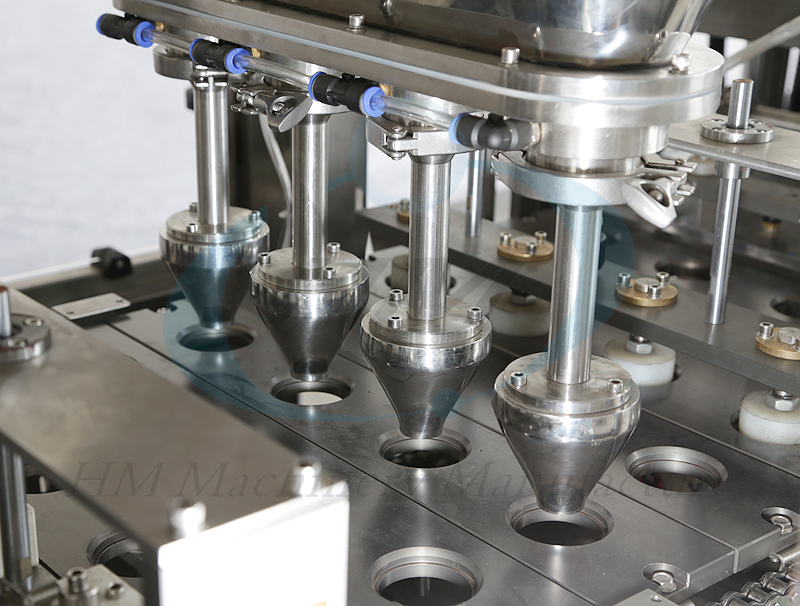

6. coffee filing system



7. Lid holder

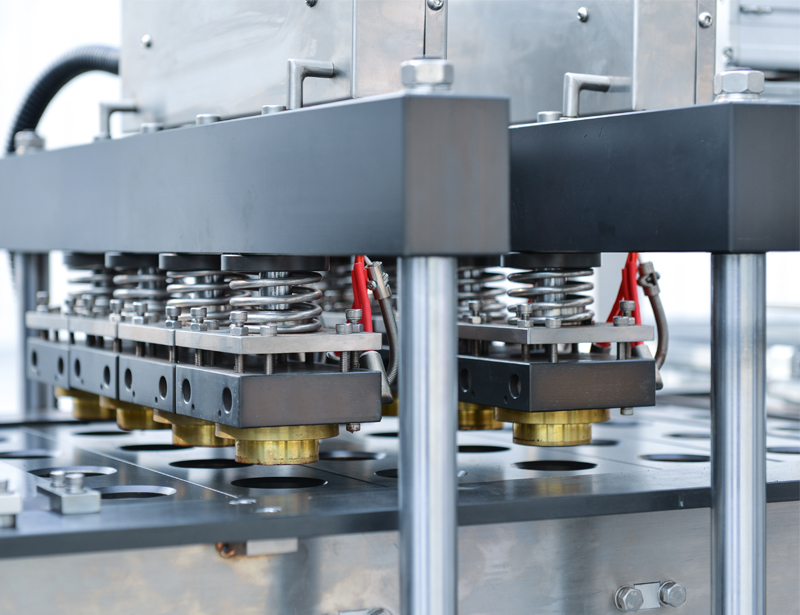

8. Sealing Part


9. Finished Kcup output

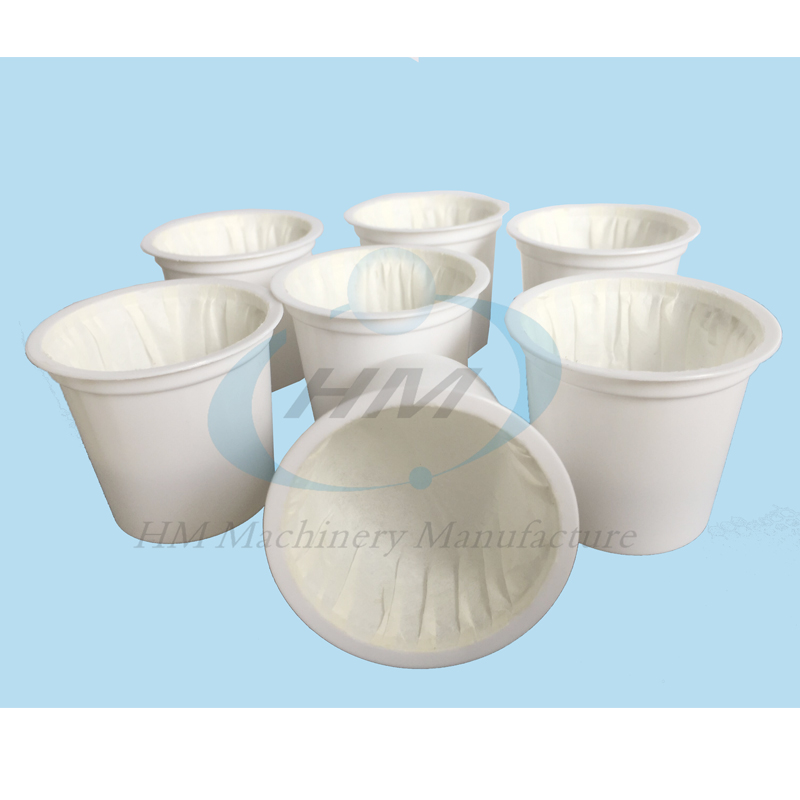

Finished kcup products:
